I have been trying the past couple of bays to get retail up and running on the Microsoft Dynamics AX 2012 R3 demo environment. There are some issues in the default environment that needs to be fixed before everything is running flawlessly.

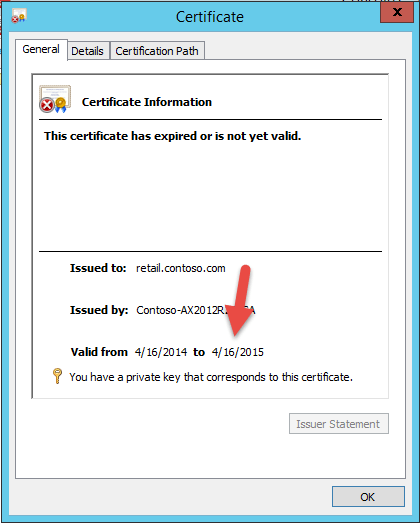

One issue I noticed was that the SSL certificate used between the async client and async server has expired (in 2015
).
To fix this we first need to request and issue a new certificate. Since the CA in the Demo is a stand-alone CA we cannot use the MMC to request the certificate, so I am using the web interface. Start Internet Explorer and browse to the address https://localhost/certsrv (since the certificate for the site is not issued to localhost there will be an error… ignore this).

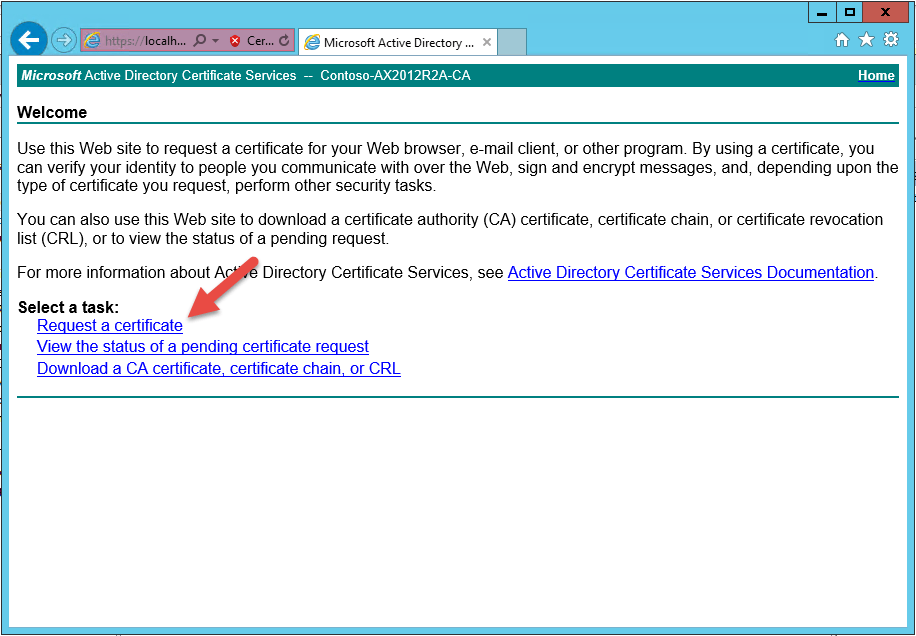

Select Request a certificate

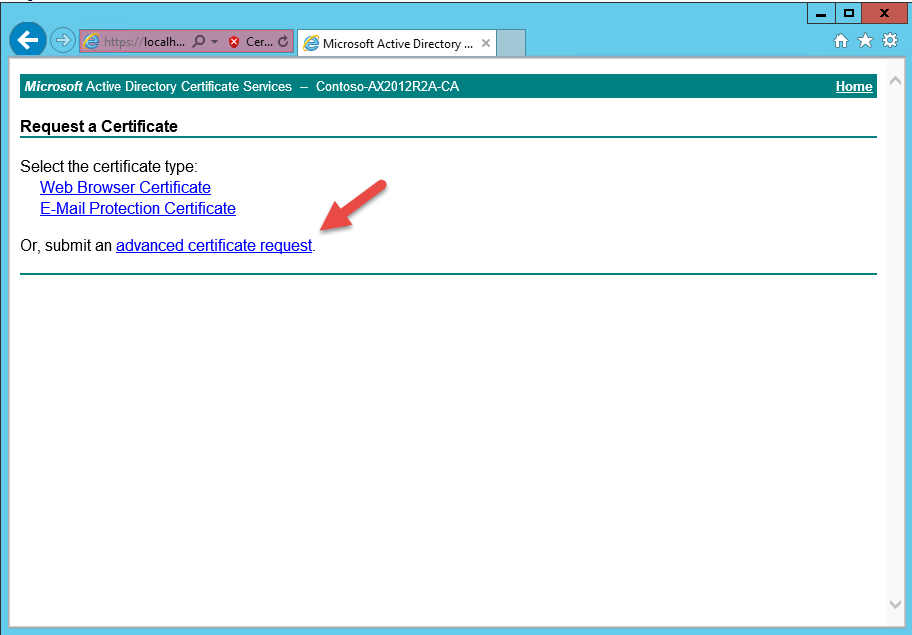

Select advanced certificate request

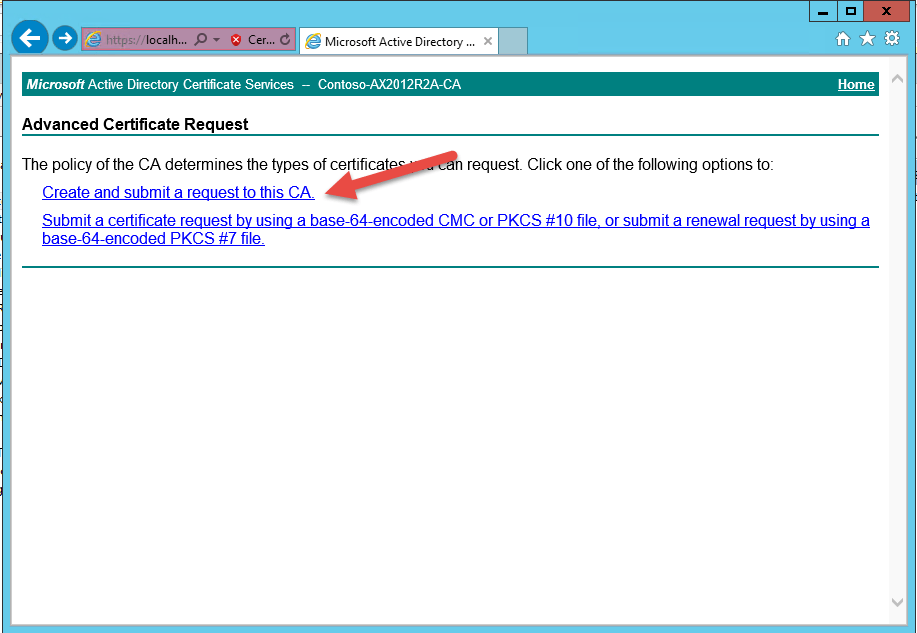

Select create and submit a request to this CA

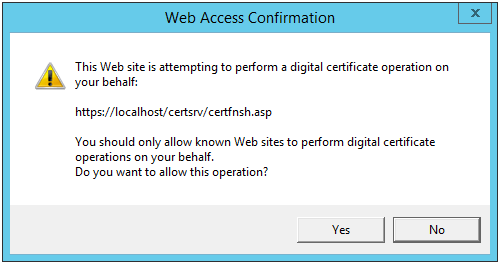

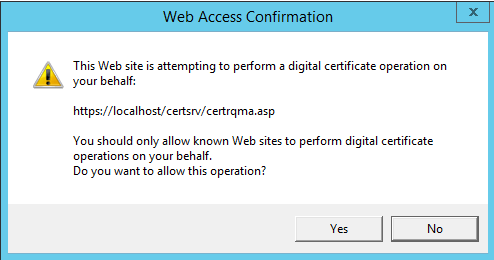

Click Yes to continue

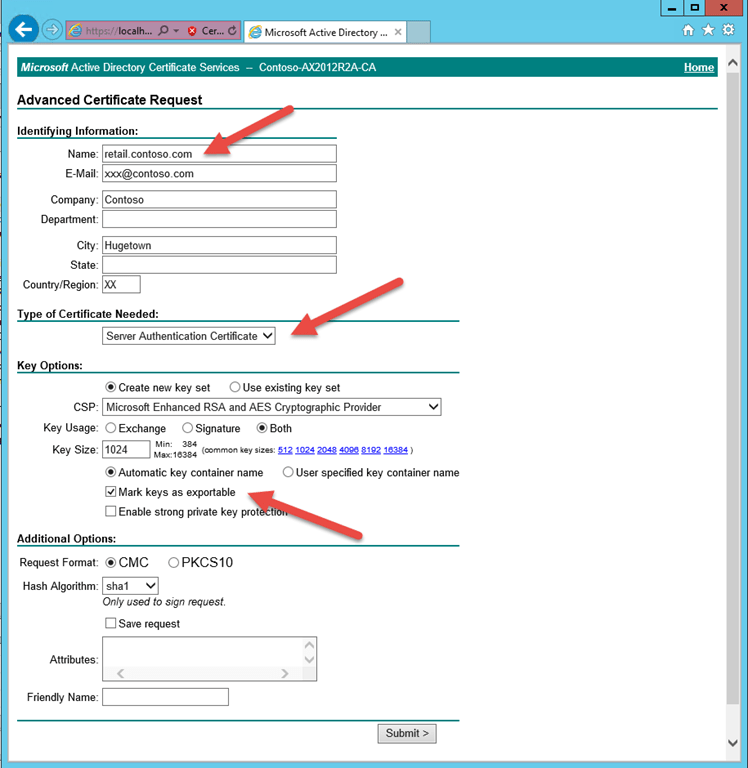

Fill in the name of the certificate. In our case the adress is retail.contoso.com, the other fields are not mandatory. Select Server Authentication Certificate and check Mark keys as exportable. Click Submit.

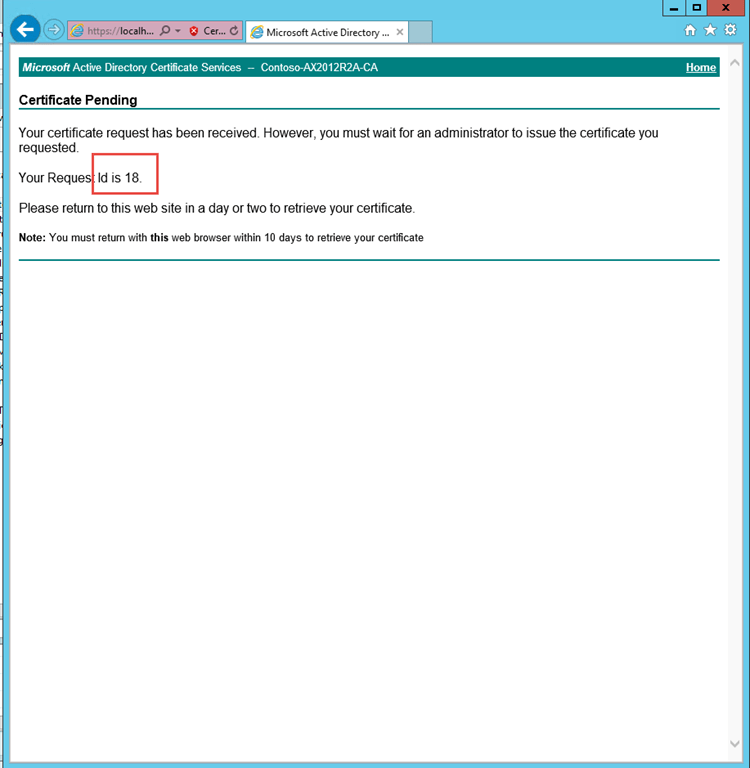

Note the id of the request and start the Certificate Authority mmc Management Console

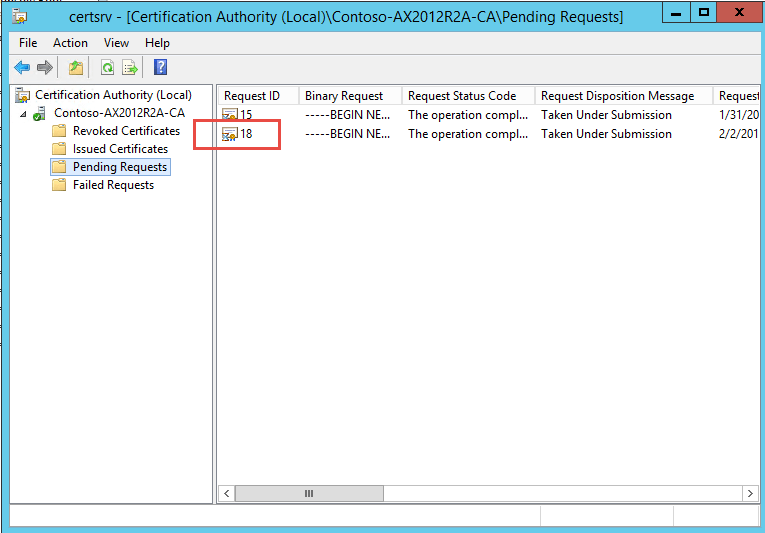

Find the request above under Pending Request. Right-click and select the task Issue

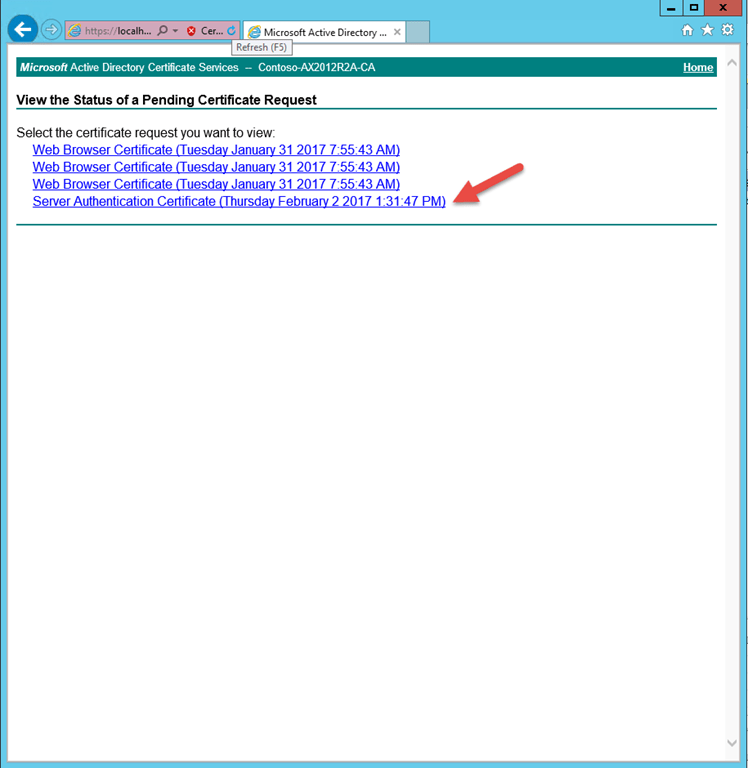

Go back to https://localhost/certsrv and click View the status of a pending certificate request. Click your request.
Click Yes to continue.

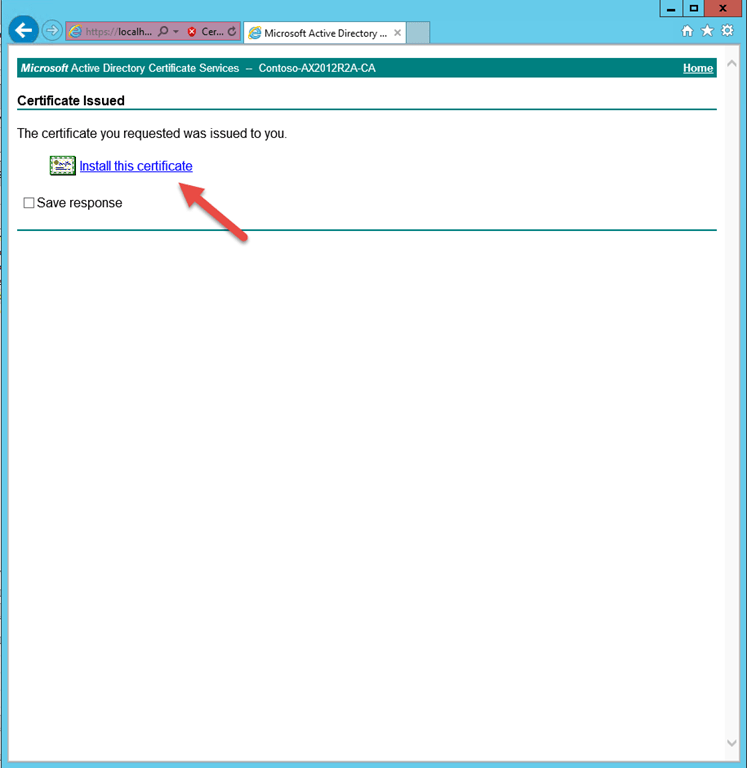

Click the Install this certificate. Unfortunately the certificate will be installed in you personal Certificate Store and you will have to move it before IIS can use it.
Start the management Console and add the Certificates snap-in for Current User and for Local Computer. Go to Current User – Personal – Certificates and find your new certificate

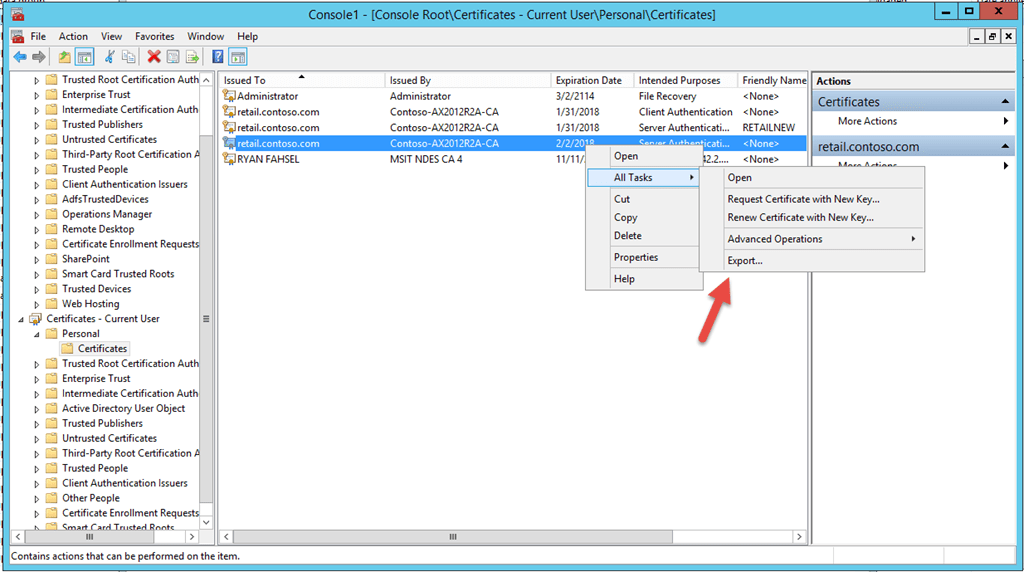

Right click the certificate and select Export

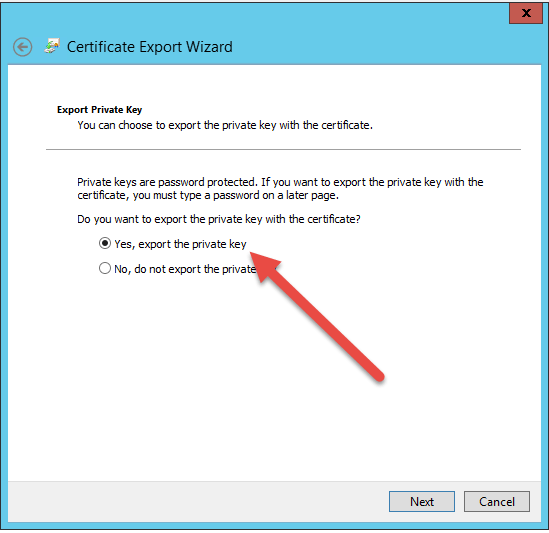

Select Yes, export the private key

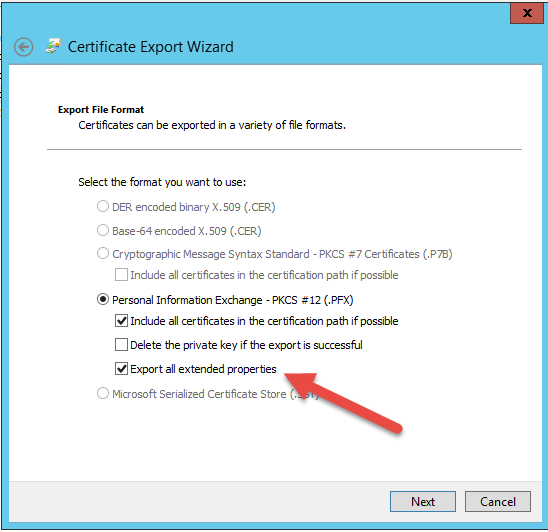

Check Export all extended properties and click next

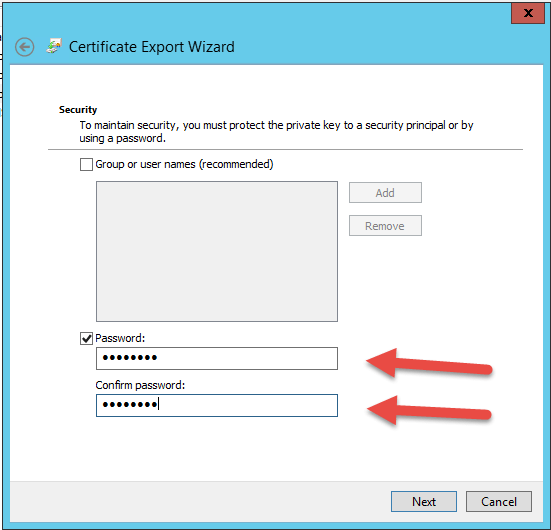

Enter a password and click next

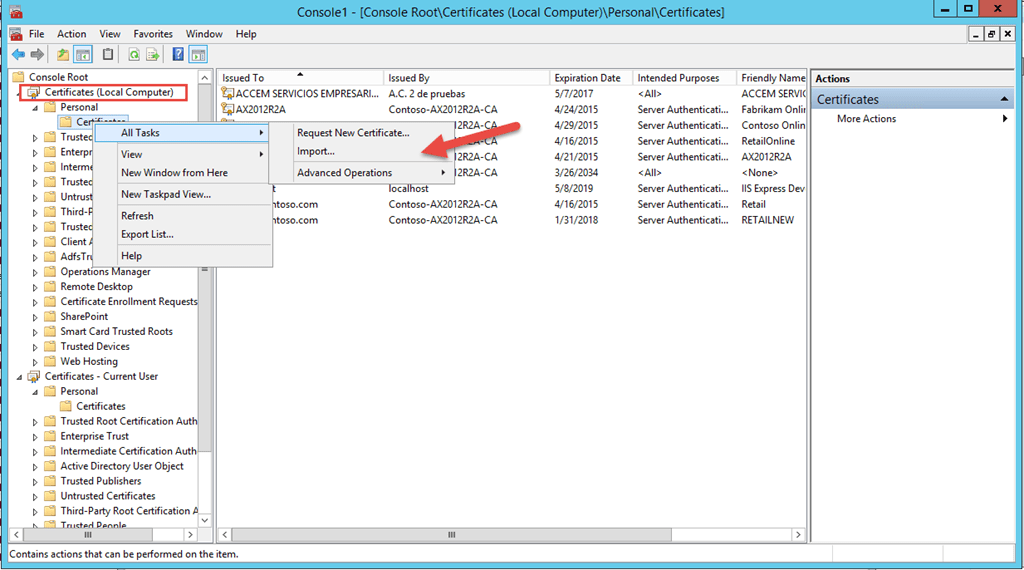

In the console on Local Computer – Personal – Certificates right click and import the Certificate you exported previously

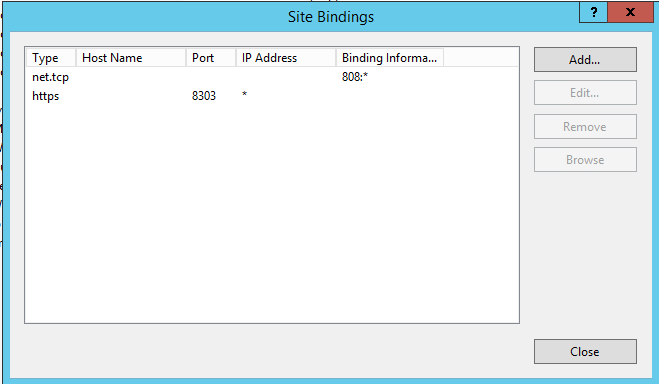

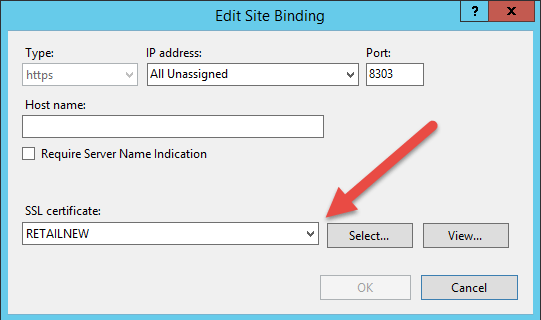

In IIS Manager edit Binding for the sites AsyncServerSite and Retail Server Website and change the certificate for HTTPS. Restart the IIS sites.
That is all
/Johan
